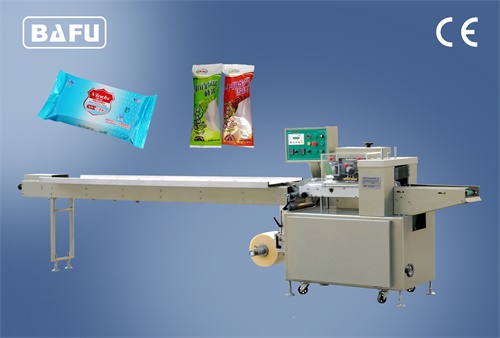

FWL350 Inverted Flow Wrapper

FWL350 Inverted Flow Wrapper is applicable to packaging the loose, irregular, stick type products, such as vegetables, steamed dumpling, ice-bar, meat, hardware, food, bakery, confectionery, dairy, fresh produce, egg roll, sausage, squid, bread, moon-cake, instant noodles, preserved fruit, jelly candy, toilet soap, pocket notebook, box pen, sticky tape, pharmaceutical, and so on. The machine‘s inverted film path gently transports the product directly onto the film from the former through the cutting head, greatly reducing jams and ensuring superior package appearance.

Function
  Computer Controller System, the photoelectric detection and bi-directional tracking, which
    can eliminate the error of packing a
nd reduce the waste of packing film and raw materials
  Adopt bottom feeding film to packaging, the machine body can be cleaned by water
  Intelligent Temperature System, Intuitive display, easy for setting, accurate temperature
  High-speed, high efficiency, stable operation, low breakdown, easy maintenance etc
  Electric controller adopts famous brand, such as Photocell-Sick(Germany), Sensor-
    Omron(Japan), Contactor-Schneider(France), Inverter-Delta(Taiwan,China), Bearing-
    SKF(Sweden) and so on

  Servo Motor + Touch Screen control version, date printer, automatic punching device,
     falling device, nitrogen filling device, stainless steel version can be available

Standard Specifications

Packing Speed 25-280 Packs/Min
Packing Length 70-360mm
Film Width
up to 360mm
Product Height 65mm
Voltage 220V,50Hz
Total Power 2.5KW
Dimension (mm) 3900x920x1300
Machine Weight 600kg
Wrapping Material CPP/PET+CPP/BOPP
