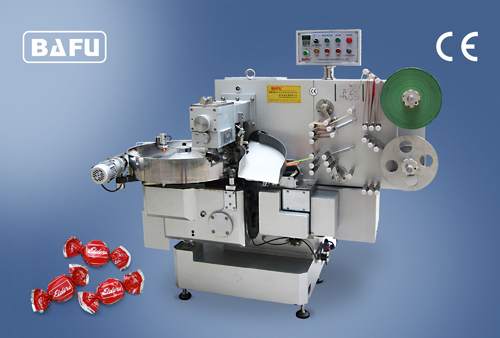

DWM550 Double Twist Packaging Machine

DWM550 Double Twist Packaging Machine is applicable to high speed packaging hard candy, milk candy & chocolate into double twist style.The machine wrapping speed up to 550 per minute. Machine of modern design, easy to clean and easy for maintenance. Fitted with double brush feed plate system, double paper feed reel holder for inner wrap or speedy change over of reels, air assisted paper feed system.

Function
  Frequency-converting,100% packing rate, no empty package
  Feeding plate equipped with feed device, can be equipped with auto hopper
  One or two layers of packing material
  Sick photocell automatic tracking(optional)
  Automatic belt feeding model is available

Standard Specifications

Packing Speed up to 550 Packs/Min
Product Size (mm) 12-33(L)x12-26(W)x6-20(H)
Voltage 380V,3P
Total Power 2.5KW
Dimension (mm) 2030x1250x1810
Machine Weight 1000kg
Wrapping Material Cellophane, PVC, PP, Waxed paper, complex material etc
