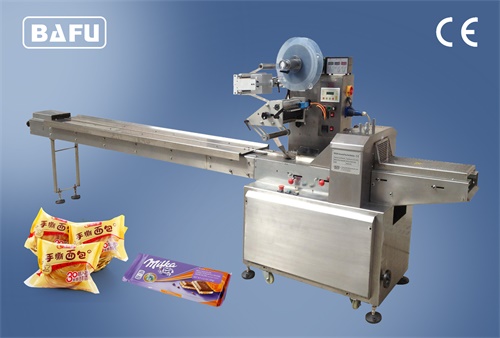

FWL280 Flow Pack Machine is an classical flow wrapper that offers the widest product size range currently available on a flow wrapper in its class. It suitable for the wrapping of the solid goods with regular shape, such as biscuit, chocolate, long shape candy, bread, Instant noodles, waster ice, ice cream, cake, medicine, commodity, knife and fork, hardware etc. The machine has a speed of 0 to 280 wraps per minute although this machine is usually manual fed and runs at lower speeds. The machine can be fitted with various automatic feeds such as conveyor infeed, magazine feed, vibration bowl feed, auto push feed and cross belt feed etc.

Function
●  Computer controller system, the photoelectric detection and bi-directional tracking, which
    can eliminate the error of packing and reduces product and film waste during production;
●  Bafu‘s sealing technology for superior seal integrity and package quality;
●  Intelligent Temperature System, Intuitive display, easy for setting, accurate temperature;
●  Flexible design can handle a wide range of products; Easy set-up, fast changeover;
●  High-speed, high efficiency, stable operation, low maintenance;
●  Electric controller adopts famous brand, such as Photocell-Sick(Germany), Sensor-
    Omron(Japan), Contactor-Schneider(France), Inverter-Delta(Taiwan,China), Bearing-
    SKF(Sweden) and so on;
●  Servo Motor+Touch Screen control version, date printer, automatic punching
    device, falling device, nitrogen filling device, stainless steel version can be available;

Standard Specifications

Packing Speed	up to 280 Packs/Min
Packing Length	70-360mm
Product Height	70mm
Voltage	220V，50Hz
Total Power	2.5KW
Dimension (mm）	4400x1050x1600
Machine Weight	600kg
Wrapping Material	CPP/PET+CPP/BOPP
